ComponentLoadingStore

The LoadingStore is based on ngrx-lite/component-store You have the exact same API with createLoadingEffect

loadingEffect​

Create your custom loadEffect.The lib set's loader state while effect is running. Here you must define your EffectName, in this Example below it's LOAD_NAME, the callback Funtion is same API as @ngrx/component-store/effect. A tapResponse to change your state is not necessary. The Effects change your state out of the box, when your stream is done.

app.component.ts
type State = LoadingStoreState<{ counter: number }, { message: string }>;

export class AppComponent {
  private store = this.storeFactory.createComponentLoadingStore<State['item'], State['error']>({
    storeName: 'LOADING_STORE',
  });

  nameEffect = this.store.loadingEffect('LOAD_NAME', (name: string) => of({ name: name }));

  constructor(private storeFactory: StoreFactory) {}
}

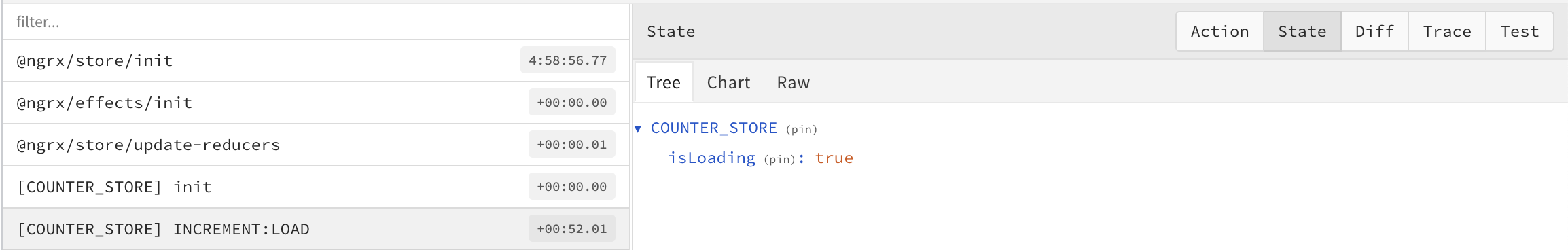

Every Effect set isLoading to true during the effect is running. Here it's possible to show a loading

indicator in your ui.

Option:skipSamePendingActions​

Create your custom loadEffect and run an action only once while the effect is running.

app.component.ts
type State = LoadingStoreState<{ counter: number }, { message: string }>;

export class AppComponent {
  private store = this.storeFactory.createComponentLoadingStore<State['item'], State['error']>({
    storeName: 'LOADING_STORE',
  });

  nameEffect = this.store.loadingEffect('LOAD_NAME', (name: string) => of({ name: name }), { skipSamePendingActions: true });

  constructor(private storeFactory: StoreFactory) {}
}

Option:skipSameActions​

Create your custom loadEffect and run an action only once, after the same action was running.

app.component.ts
type State = LoadingStoreState<{ counter: number }, { message: string }>;

export class AppComponent {
  private store = this.storeFactory.createComponentLoadingStore<State['item'], State['error']>({
    storeName: 'LOADING_STORE',
  });

  nameEffect = this.store.loadingEffect('LOAD_NAME', (name: string) => of({ name: name }), { skipSameActions: true });

  constructor(private storeFactory: StoreFactory) {}
}

Option:repeatActions​

Repeat your effect when action on store was triggered.

app.component.ts
type State = LoadingStoreState<{ counter: number }, { message: string }>;
const mySideAction = createAction<string>(`TestAction`);
export class AppComponent {
  private store = this.storeFactory.createComponentLoadingStore<State['item'], State['error']>({
    storeName: 'LOADING_STORE',
  });

  nameEffect = this.store.loadingEffect('LOAD_NAME', (name: string) => of({ name: name }), { repeatActions: [mySideAction] });

  constructor(private storeFactory: StoreFactory) {}
}

Option:autoLoad​

Trigger the loader exactly once on the next microtask after the store is constructed. Only available for parameter-free effects — passing autoLoad: true to a parameterized effect is a compile-time error (enforced via TypeScript conditional types).

This removes the need for a manual effect() block in your component for init loads.

config.store.ts
@Injectable({ providedIn: 'root' })
export class ConfigStore {
  private store = inject(StoreFactory).createComponentLoadingStore<Config, ApiError>({
    storeName: 'CONFIG',
  });

  public state = this.store.state;

  public reload = this.store.loadingEffect('LOAD_CONFIG', () => this.api.getConfig(), {
    autoLoad: true,
  });

  constructor(private api: ConfigApi) {}
}

autoLoad fires on both server and client (SSR-correct). To suppress the duplicate fetch after hydration, combine it with skipWhen.

Option:skipWhen​

A pre-flight callback that is evaluated before every effect run. When it returns true, the dispatch is suppressed — applies to autoLoad, manual calls, and any other trigger.

Typical use cases:

  • SSR hydration: skip the client-side re-fetch when state is already restored from TransferState.
  • Cache hits: skip when the data is already cached.
  • Feature flags: gate the call behind a runtime condition.
config.store.ts
@Injectable({ providedIn: 'root' })
export class ConfigStore {
  private store = inject(StoreFactory).createComponentLoadingStore<Config, ApiError>({
    storeName: 'CONFIG',
  });

  public state = this.store.state;

  public reload = this.store.loadingEffect('LOAD_CONFIG', () => this.api.getConfig(), {
    autoLoad: true,
    skipWhen: () => this.transferState.hasRestored('CONFIG'),
  });

  constructor(
    private api: ConfigApi,
    private transferState: StoreTransferState,
  ) {}
}

The library itself stays SSR-agnostic. Server-side fetching, hydration, and TransferState integration live in your application code; skipWhen is the hook the library exposes for it.

reactiveLoadingEffect​

reactiveLoadingEffect binds a Signal<P> source to the loading lifecycle. The container provides the source; the store owns the loading mechanics. It is built on top of loadingEffect, so action stream, DevTools, and repeatActions behave identically.

Mental model: Owner / Driver vs. Consumer​

  • Owner / Driver: the one container that calls the connect function (typically a route container). Decides when and how loading happens.
  • Consumer: any number of components that inject() the store and read state() — read-only.

The library enforces the convention with a single-connect guard: a second parallel-active connect for the same store name logs console.error in development mode (silent in production).

Owner store​

professional-list.store.ts
@Injectable({ providedIn: 'root' })
export class ProfessionalListStore {
  private store = inject(StoreFactory).createComponentLoadingStore<Professional[], ApiError>({
    storeName: 'PROFESSIONAL_LIST',
  });

  public state = this.store.state;

  public connect = this.store.reactiveLoadingEffect('load', (params: SearchParams) => this.api.search(params), { skipSameActions: true });

  constructor(private api: ProfessionalApi) {}
}

Owner / Driver component​

search-page.component.ts
@Component({
  /* ... */
})
export class SearchPageComponent {
  private filter = signal<SearchParams>({
    /* ... */
  });
  private connected = inject(ProfessionalListStore).connect(this.filter);
}

Consumer component​

result-list.component.ts
@Component({
  template: `<div *ngFor="let p of store.state().item">{{ p.name }}</div>`,
})
export class ResultListComponent {
  protected store = inject(ProfessionalListStore);
}

Behavior notes​

  • A new source value during a pending loader call cancels the in-flight request automatically (switchMap behavior — not configurable).
  • DestroyRef of the calling injection context tears down the effect and frees the connect slot when the component unmounts.
  • Default skipSameActions: false — pass true for signal sources where computed()-derived values produce new object references on every dependency update.
  • For multi-source binding, merge upstream signals with computed() before passing one signal to connect — there is no API knob for it.

Options​

reactiveLoadingEffect<P>(
  name: string,
  loader: (params: P) => Observable<ITEM>,
  options?: {
    skipSameActions?: boolean;          // default false; recommend true for signal sources
    skipSamePendingActions?: boolean;   // default false
    skipWhen?: (params: P) => boolean;  // pre-flight skip with param access
    repeatActions?: ActionCreator[];    // re-fire when any of these actions dispatch
  },
): (source: Signal<P>) => void

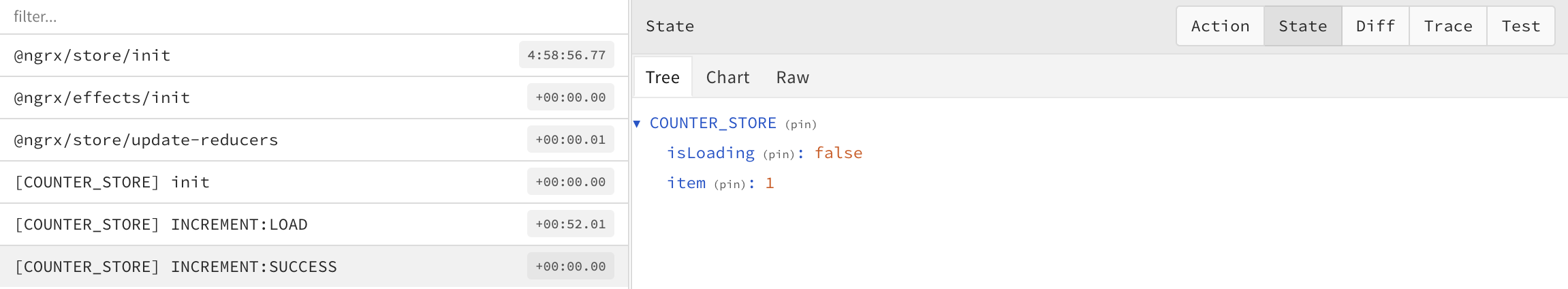

Example for a successfully callback Observable​

nameEffect = this.store.loadingEffect('LOAD_NAME', (name: string) => of({ name: name }));

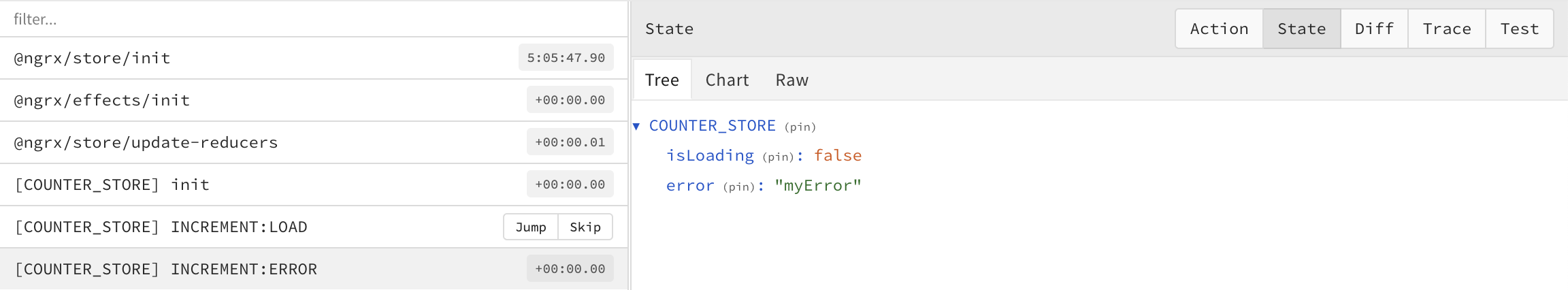

Example for a Error Callback Observable​

nameEffect = this.store.loadingEffect('LOAD_NAME', (name: string) =>
  throwError(() => {
    errorCode: 'myError';
  }),
);
