Store Devtools

To debug your state with the Redux Devtools Extension, install and register @ngrx/store-devtools.

app.config.ts
import { ApplicationConfig, isDevMode } from '@angular/core';
import { provideEffects } from '@ngrx/effects';
import { provideStore } from '@ngrx/store';
import { provideStoreDevtools } from '@ngrx/store-devtools';

export const appConfig: ApplicationConfig = {
  providers: [
    provideStore({}),
    provideEffects([]),
    provideStoreDevtools({
      name: 'ngrx-lite-demo',
      maxAge: 25,
      logOnly: !isDevMode(),
      // define the monitor property here
      monitor: (state, action) => action,
    }),
  ],
};
caution

It's important to set the monitor property in your devtools config, otherwise importing a state is not possible. The library reads the monitored actions to re-register reducers for stores that are not currently mounted.

note

maxAge should be 5 or higher. With a lower value the library warns on the console, because too few retained actions break the time-travel sync.

What it looks like​

Store is initialized​

After the store is created you find it in the Redux DevTools:

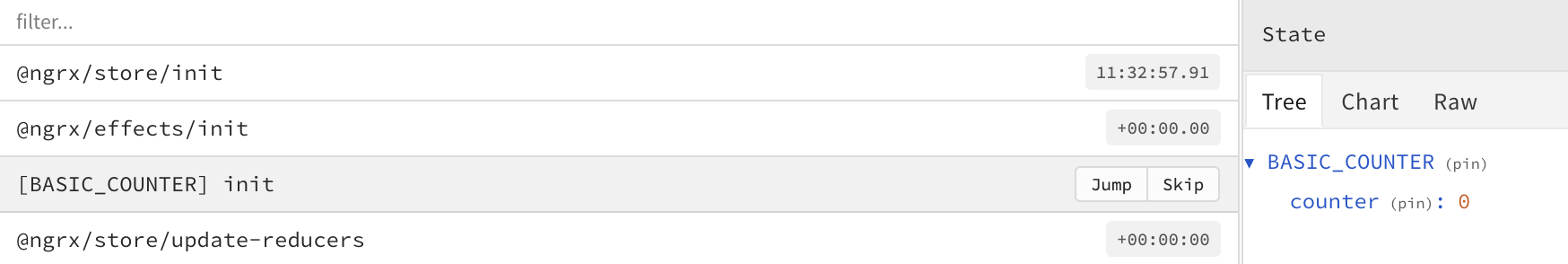

Component store in the DevTools after initialization

After a state change​

setState and patchState show up as regular actions. Pass a custom action name as the second argument to make them easy to spot:

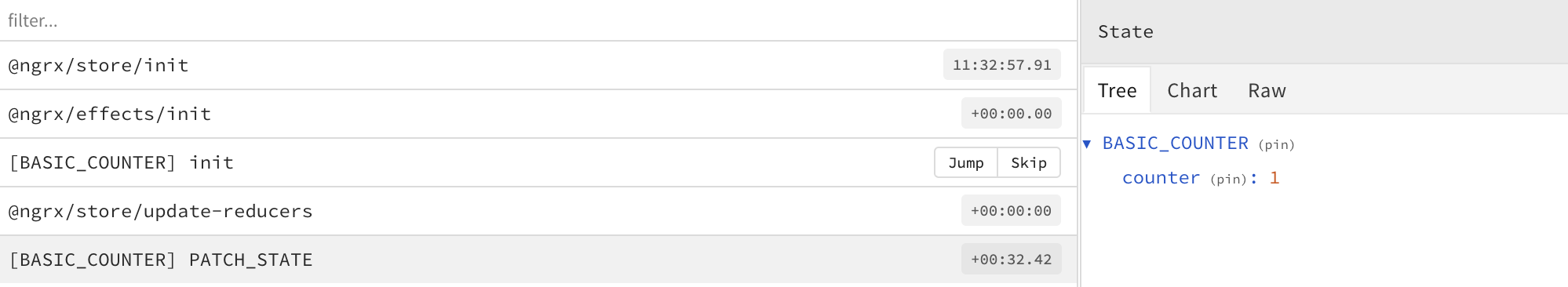

Component store in the DevTools after patchState
